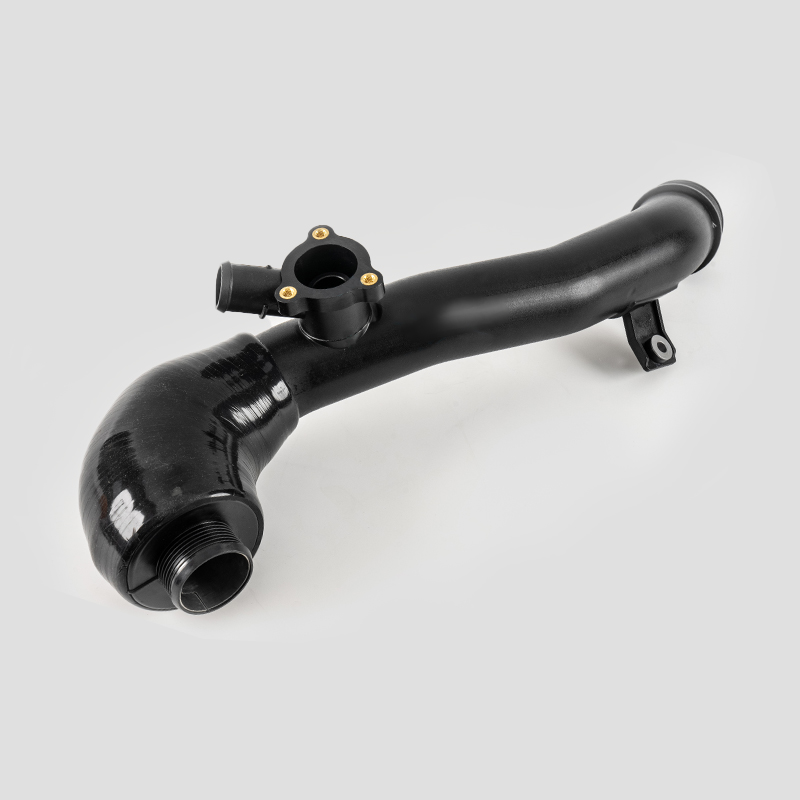

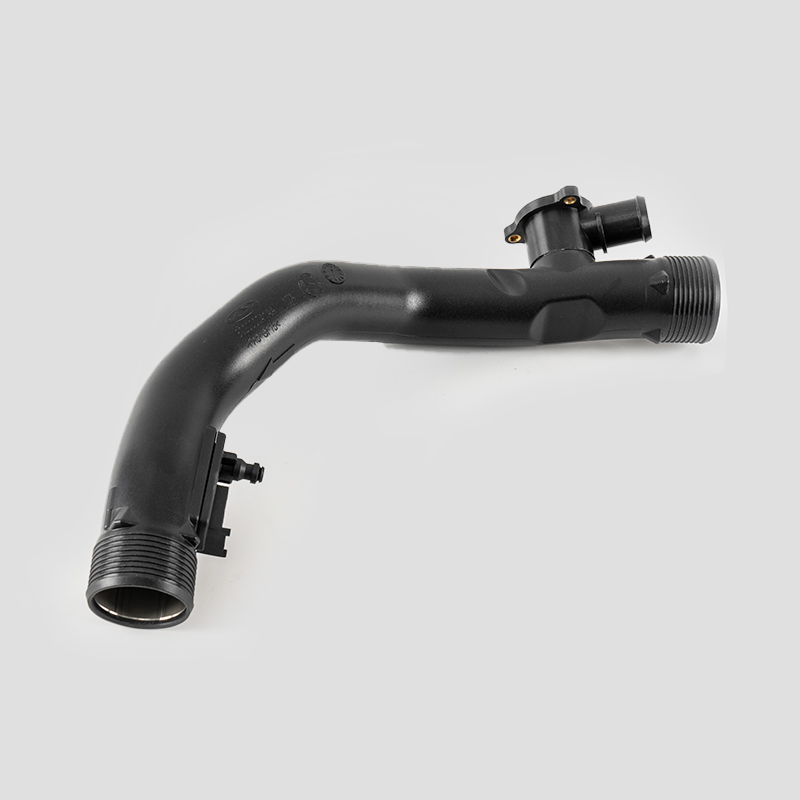

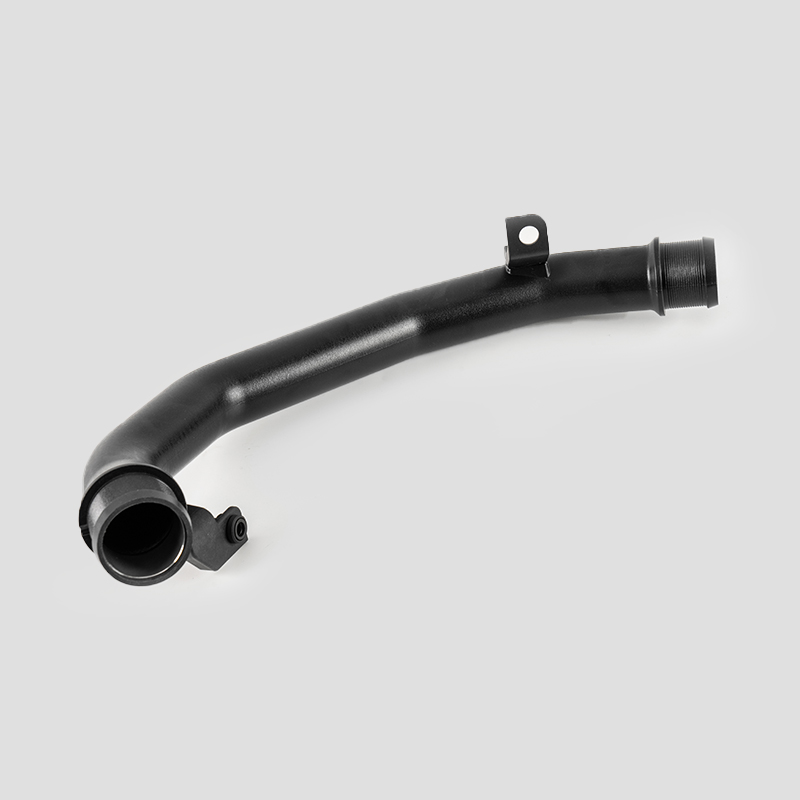

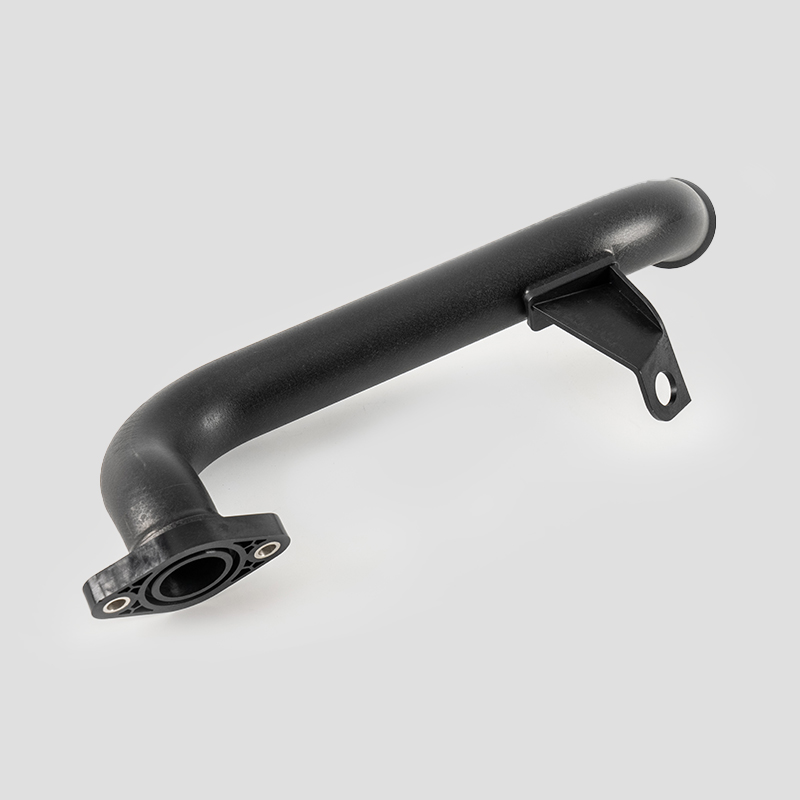

Intercooler Intake Pipe Assembly Manufacturer

Structure
1. Pipe
Shape and length: Intercooler Intake Pipe Assembly usually adopts a curved pipe design to adapt to the spatial layout of the engine compartment while maintaining a suitable length to optimize airflow.
Smooth inner wall treatment: The inner wall is finely processed to keep it smooth, reduce friction resistance, and ensure smooth air flow.
2. Interface
Connection port: One end of the intake pipe is connected to the intercooler, and the other end is connected to the engine air intake. A standardized interface is designed to ensure good sealing.
Flange or snap-on design: The interface adopts a flange or snap-on method to enhance the stability and sealing of the connection.
3. Sensor interface
Integrated sensor position: A dedicated interface is designed for installing airflow sensors or temperature sensors to monitor the air flow and temperature entering the engine in real time.
Function
1. Air guidance
Efficient guidance: Responsible for efficiently guiding the air cooled by the intercooler to the engine, improving the air intake efficiency of the engine.
Reduce vortex: The optimized pipe shape design reduces the generation of vortex, ensures stable air inflow, and improves combustion efficiency.
2. Cooling air transmission
Maintaining temperature: The air cooled by the intercooler maintains a lower temperature in the intake pipe, reducing the intake temperature and improving combustion efficiency.
Preventing heat loss: The design considers the application of insulation materials to reduce heat loss during the intake process.
Design features
1. Modular design
Flexible adaptability: The design allows compatibility with a variety of intercooler and engine configurations to meet the needs of different models.
2. High-performance materials
High-temperature resistant materials: High-temperature and corrosion-resistant materials (such as plastic composites or aluminum alloys) are usually used to ensure stability under harsh conditions.
Lightweight design: Material selection and design are considered to reduce weight, reduce the burden on the vehicle, and improve fuel efficiency.
3. Sealing design
Use of sealing rings: High-quality sealing rings are used at the interface to ensure airtightness, prevent air leakage, and ensure stable air flow.
Anti-vibration design: Anti-vibration characteristics are considered in the design to reduce the impact of vibration on components and connections and extend service life.
Performance and testing
1. High temperature and high pressure testing
High temperature and high pressure testing is carried out during the production process to verify the performance and sealing of components under harsh conditions.
2. Flow test
Carry out air flow test to ensure that the assembly can provide sufficient air flow to meet the needs of the engine under actual working conditions.
Application area
Intercooler Intake Pipe Assembly is widely used in various turbocharged engine vehicles, especially in high-performance models and heavy-duty vehicles, which have particularly strict requirements on air flow and cooling capacity.
